Grooved MDF Wood Fiber Acoustic Panels Classic Design Sound Absorbing Wall Panel
Description:
Winego Grooved MDF Wood Fiber Acoustic Panels Classic Design Sound Absorbing Wall Panels are a blend of classic style and modern technology. Featuring a slotted and perforated structure, they are designed for optimal mid-to-low frequency sound absorption with an NRC of 0.85, making them ideal for theaters and auditoriums.
Feature:
1. Acoustic absorption effect: Grooved acoustic panels have good acoustic absorption effect, which can absorb the energy of sound waves, reduce echo and noise, and create a clearer and more comfortable sound environment.
2. Versatile appearance: Grooved acoustic panels can be customized according to different design needs and decorative styles, with a wide range of shapes, sizes, arrangements and colors to choose from to suit different spaces and uses.
3. Artistic and decorative: The design and arrangement of grooved acoustic panels can produce unique patterns, textures and layering, making them not only sound-absorbing, but also have certain artistic and decorative values.
4. Partation: Groove acoustic panels can be used to divide space, separate areas, and at the same time realize sound control and isolation.

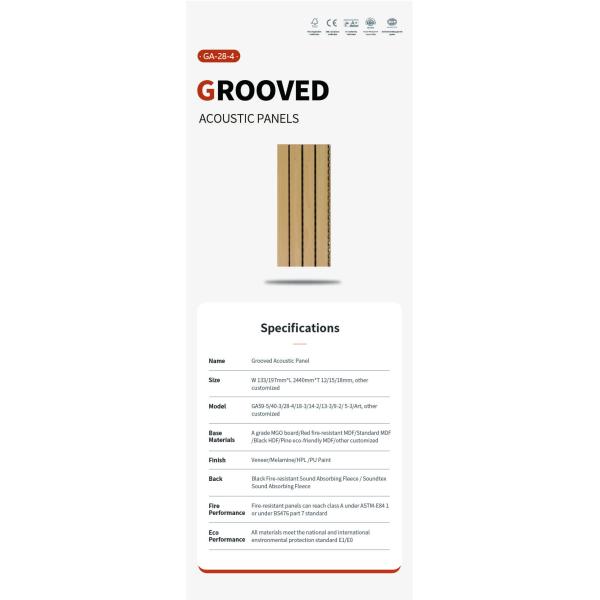

Specificatins:
| Name | Grooved MDF Wood Fiber Acoustic Panel |
| Base Materials | MDF/FR MDF/HDF |
| Finish | Veneer/Melamine/HPL fire-proof |
| Model | GA28-4 |
| Size | W 133/197*L 2440mm |
| Environmental protection | E1 or E0 |
| Warranty | 2years |
| Installation | Nail gun / Keel |
| MIN. order quantity | 200 SQM |
| Packing details | 10pcs per CTN
CTN size: 2490*150*180mm |
| Delivery time | 3 weeks |
| Original place | Guangzhou,China |
| Payment term | TT :50% deposit Balance before shipment |
| Additional service | OEM |
| NRC | 0.85 |
| Certificate | CE,FSC,France A+,ASTM-E84 1,BS476 PART7 |
| Brand | Winego |
Application:
Multi-functional hall
Conference room
Auditorium
Opera house
Concert hall
TV Station
Music hall
Piano room
How to install:
Method A:
1. Fix keel on wooden battens with gun nails.
2. Insert clips into the keel to secure panels.
3. Install from left to right and bottom to top.
4. Adjust clips if needed for alignment.
5. Leave a 3mm gap between panel heads.
Method B:
1. Level the wall with wooden battens.
2. Fill with fiberglass acoustic wool.
3. Fix panels on battens with gun nails.
.
FAQ:
1. What sizes are available?
- Standard sizes are 133*2440 mm and 197*2440 mm with thicknesses of 12mm, 15mm, and 18mm.
2. What materials are the panels made from?
- Options include MDF, MgO boards, carbon fiber boards, and solid wood.
3. Can I customize the panel finishes?
- Yes, finishes can be customized with melamine, veneer, HPL, and more.
1. What colors are available?
- Colors can be chosen from our chart or customized to your preferences.
